| Parameter | Specification |
|---|---|

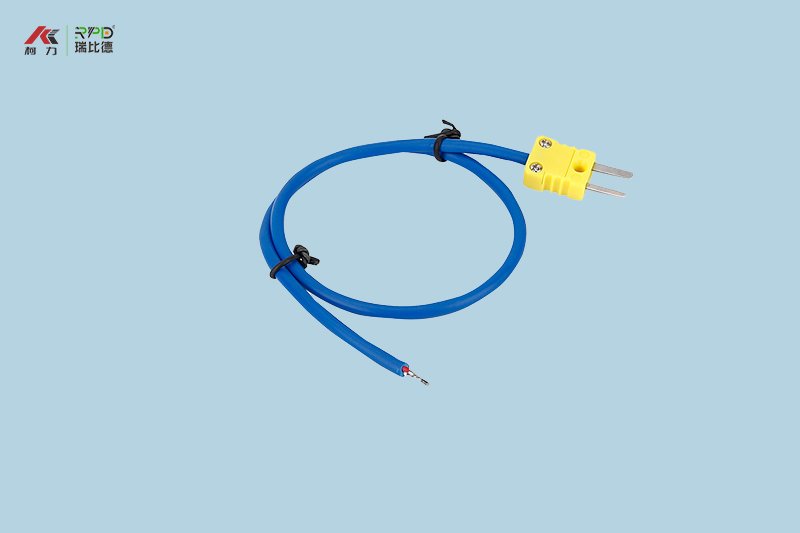

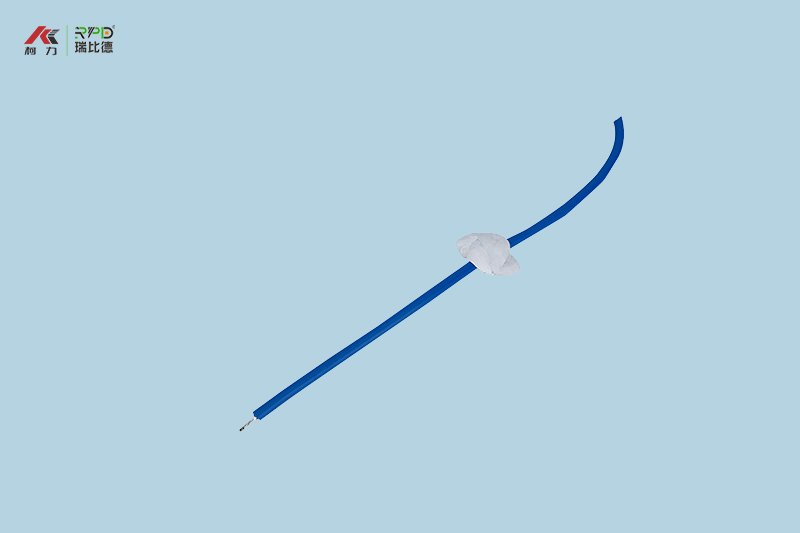

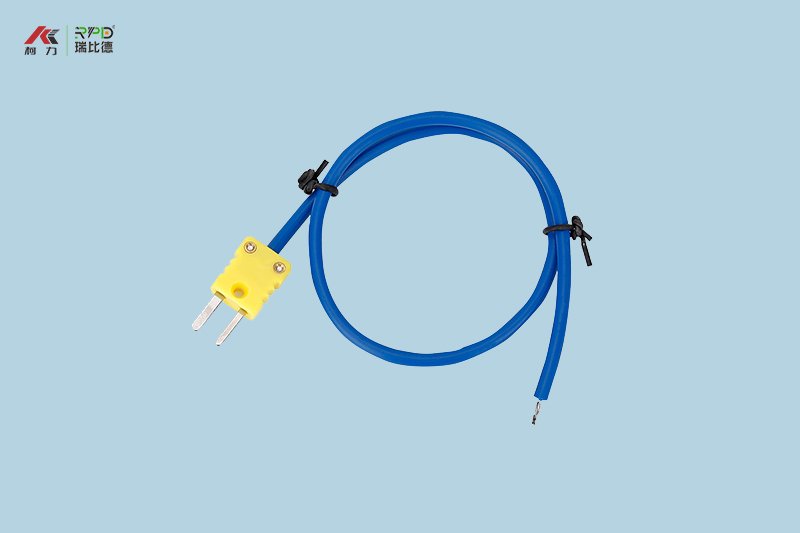

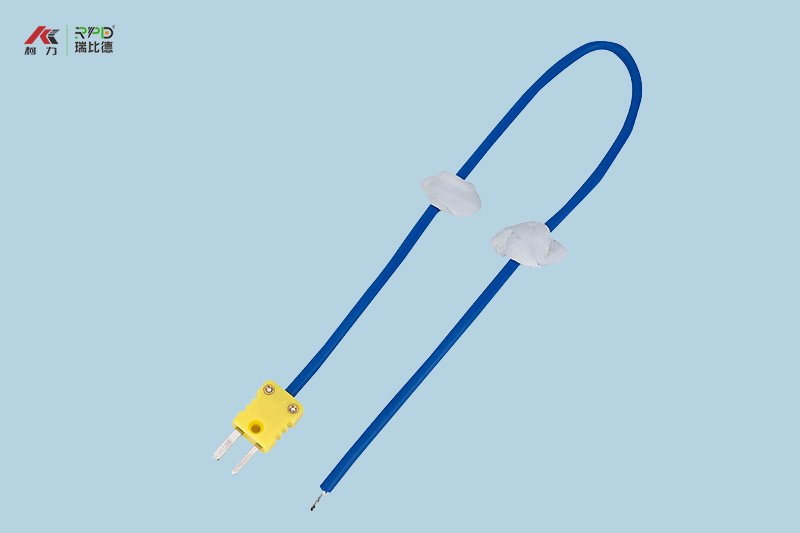

| Product Name | Plug-in / Connector Type Thermocouple |
| Thermocouple Type | K, J, T, E (standard); S, R, B (high-temperature custom) |
| Connector Standard | Standard Industrial Plugs (e.g., Miniature, Standard, Heavy-duty) |
| Probe Material | Stainless Steel 304/316, Inconel, Ceramic (per type) |
| Probe Diameter | 1.5mm ~ 6mm |
| Probe Length | 100mm ~ 1000mm (customizable) |
| Insulation | MgO (Magnesium Oxide) for high protection |
| Operating Temperature | -50℃ ~ 1200℃ (varies by type and material) |
| Accuracy | Class 1 / Class 2 |
| Response Time | Fast (1~5 seconds, depends on probe size) |
| Connection | Quick-plug / Socket type, detachable |
| Protection Grade | IP65 ~ IP67 (standard) |
Applications
- Industrial equipment maintenance & temporary testing (furnaces, boilers, pipelines)
- Automotive manufacturing & testing (engine, exhaust, component temperature check)
- HVAC system commissioning & troubleshooting
- Food processing & beverage production line inspection
- Laboratory & educational experiments (flexible, easy to set up)
- Plastic injection molding & die-casting machinery
Advantages
- Tool-free installation: Quick plug-and-play design, saves replacement time.
- High versatility: Compatible with various readers, controllers, and data loggers.
- Easy maintenance: Detachable structure, reduces downtime for sensor replacement.
- Wide applicability: Suitable for both temporary and fixed installation scenarios.
- Stable signal transmission: Secure connection avoids signal loss or interference.
Disadvantages
- Limited durability: Connector interface may wear out with frequent plugging/unplugging.
- Slightly higher cost: Compared to non-detachable wired thermocouples.
- Environmental risk: Exposed connectors may be damaged in harsh dust/water environments (requires additional protection).
- Size constraints: Bulkier than surface or miniature probes for tight spaces.
