| Parameter | Details |
|---|---|
| Sensor Type | PT100 RTD (Class A / Class B) / Optional: Type K / J / T Thermocouple, NTC Thermistor |
| Temperature Range | -50°C ~ +200°C (Standard) / Customizable up to +450°C for high-temperature models |
| Accuracy | ±0.1 / 0.2 / 0.3 / 0.5°C (PT100 Class A/Class B optional; Type K: ±0.5%FS) |
| Probe Material | 304 Stainless Steel (316L optional for corrosive environments) |
| Probe Diameter | φ3mm / φ4mm / φ5mm / φ6mm (Customizable) |
| Probe Length | 50mm / 100mm / 150mm / 200mm (Customizable) |
| Thread Specification | M6 / M8 / M10 / M12 / G1/4″ / 1/8″NPT (Standard, customizable) |
| Cable Type | Fiberglass Braided High-Temperature Shielded Cable |
| Standard Cable Length | 1m / 2m / 3m / 5m (Custom lengths available) |
| Output Signal | 2-wire / 3-wire / 4-wire PT100; Type K thermocouple bare leads; Optional 4-20mA / RS485 transmitter |
| Response Time | < 2s (Fast response for dynamic temperature monitoring) |
| Insulation Resistance | ≥100MΩ @ 500VDC (Room temperature) |
| Protection Grade | IP65 (Dust-proof, splash-proof for industrial environments) |
Product Description

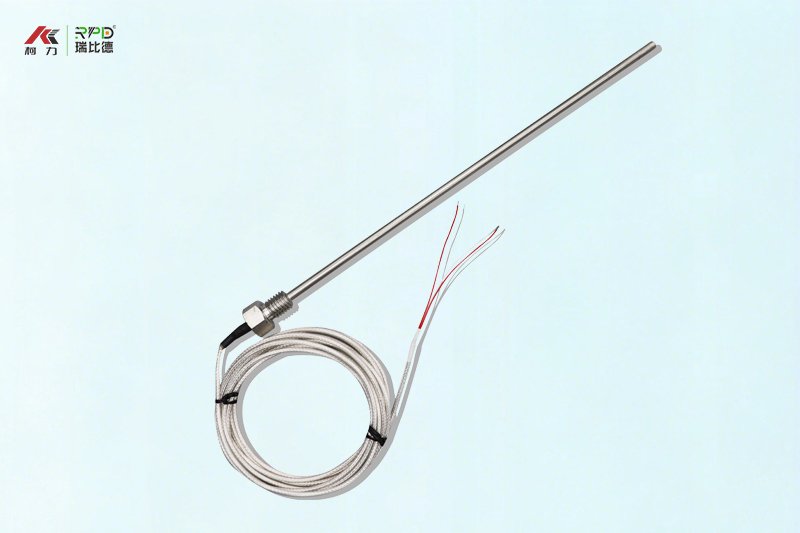

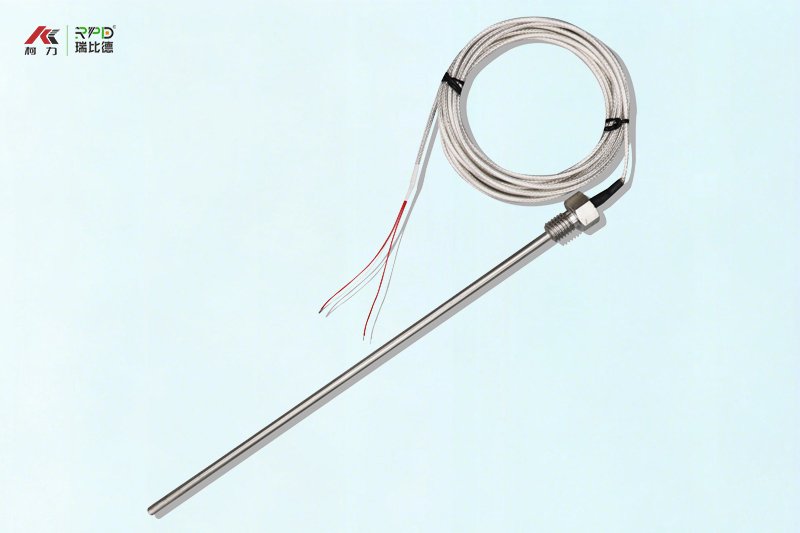

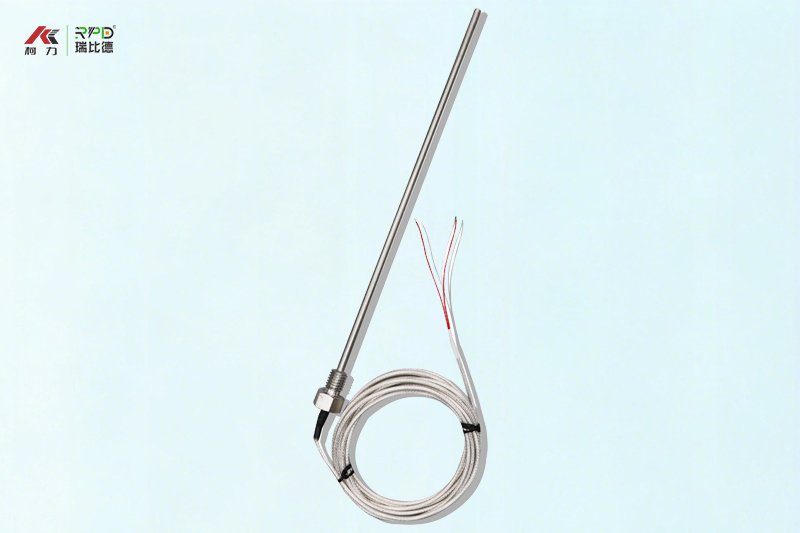

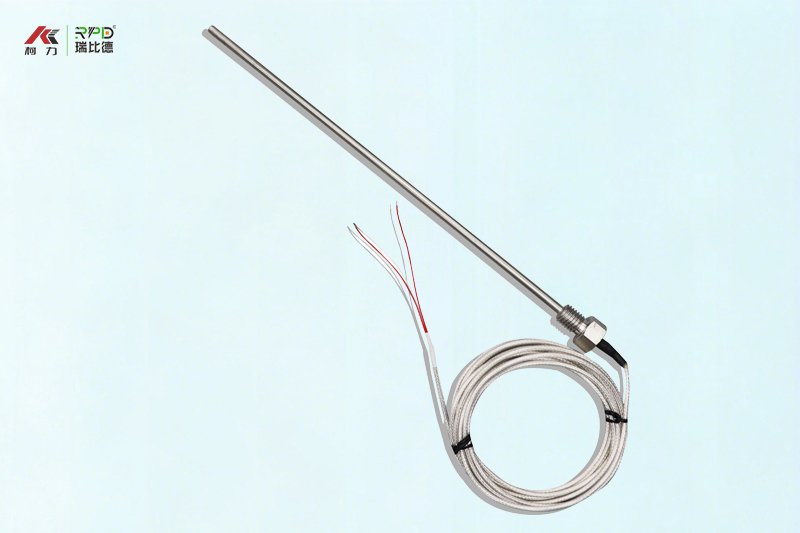

This threaded probe temperature sensor is a high-precision industrial temperature measurement solution designed for direct immersion or fixed installation in pipes, tanks, and equipment. It features a durable stainless steel probe with a threaded mounting fitting, enabling secure, leak-proof installation in process pipelines, liquid tanks, and mechanical components. The sensor is equipped with a premium PT100 RTD (or optional Type K thermocouple/NTC) sensing element, paired with a high-temperature resistant fiberglass braided cable that withstands harsh industrial environments.
The sensor delivers fast, accurate temperature readings with excellent long-term stability, making it ideal for industrial process control, HVAC, automotive, and equipment monitoring applications. The bare lead wire design allows for seamless integration with temperature controllers, PLCs, data loggers, and industrial monitoring systems, while the customizable probe size, thread type, and cable length ensure compatibility with a wide range of installation requirements.
✨ Product Advantages
- Secure & Leak-Proof Installation: Threaded mounting design ensures a tight, reliable seal for pipe and tank installations, preventing leakage and sensor displacement.
- High Precision & Fast Response: Premium PT100/thermocouple sensing elements provide accurate, real-time temperature measurements with rapid response to dynamic temperature changes.
- Industrial-Grade Durability: 304 stainless steel probe and high-temperature braided cable resist corrosion, high temperatures, and mechanical wear, suitable for harsh industrial environments.
- Highly Customizable: Available in multiple sensor types, probe sizes, thread specifications, and cable lengths to meet specific project and installation requirements.
- Wide Compatibility: Bare lead wires are compatible with all major temperature control and monitoring systems, supporting easy integration into existing industrial setups.
- Low Maintenance: Robust construction and stable sensing performance ensure long-term reliability with minimal calibration and maintenance.
🎯 Application Scenarios
- Industrial Process Control: Temperature monitoring of process pipes, tanks, reactors, and equipment in chemical, food & beverage, pharmaceutical, and manufacturing industries.
- HVAC & Refrigeration: Immersion temperature measurement for liquid pipes, chillers, boilers, and HVAC systems.
- Automotive & Machinery: Temperature sensing for engine components, hydraulic systems, and industrial machinery.
- Energy & Power: Temperature monitoring of pipelines, boilers, and power generation equipment.
- Commercial Kitchen & Appliances: Temperature measurement for ovens, water heaters, and commercial kitchen equipment.
- Laboratory & Test Equipment: Precision temperature sensing for test benches, environmental chambers, and laboratory instruments.
