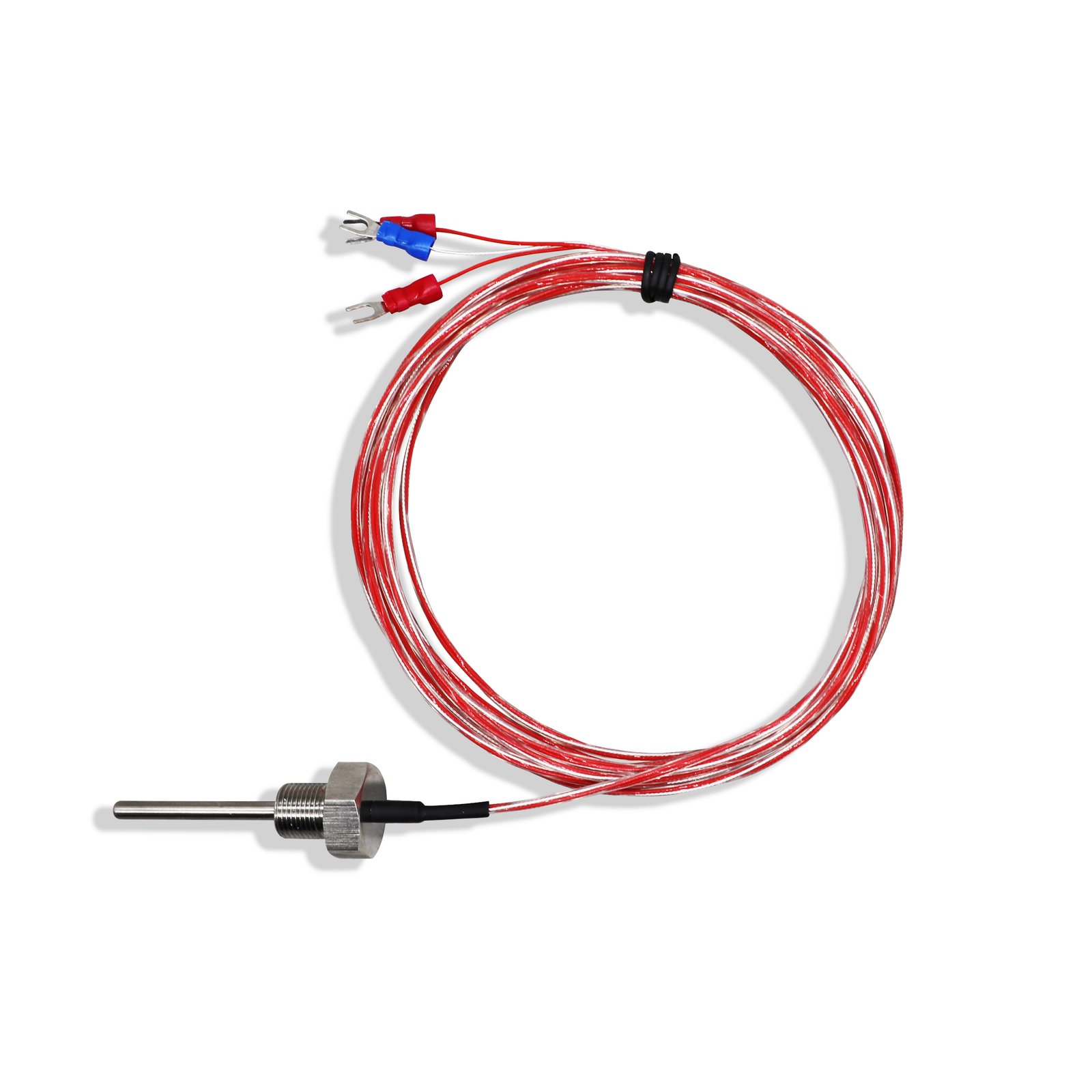

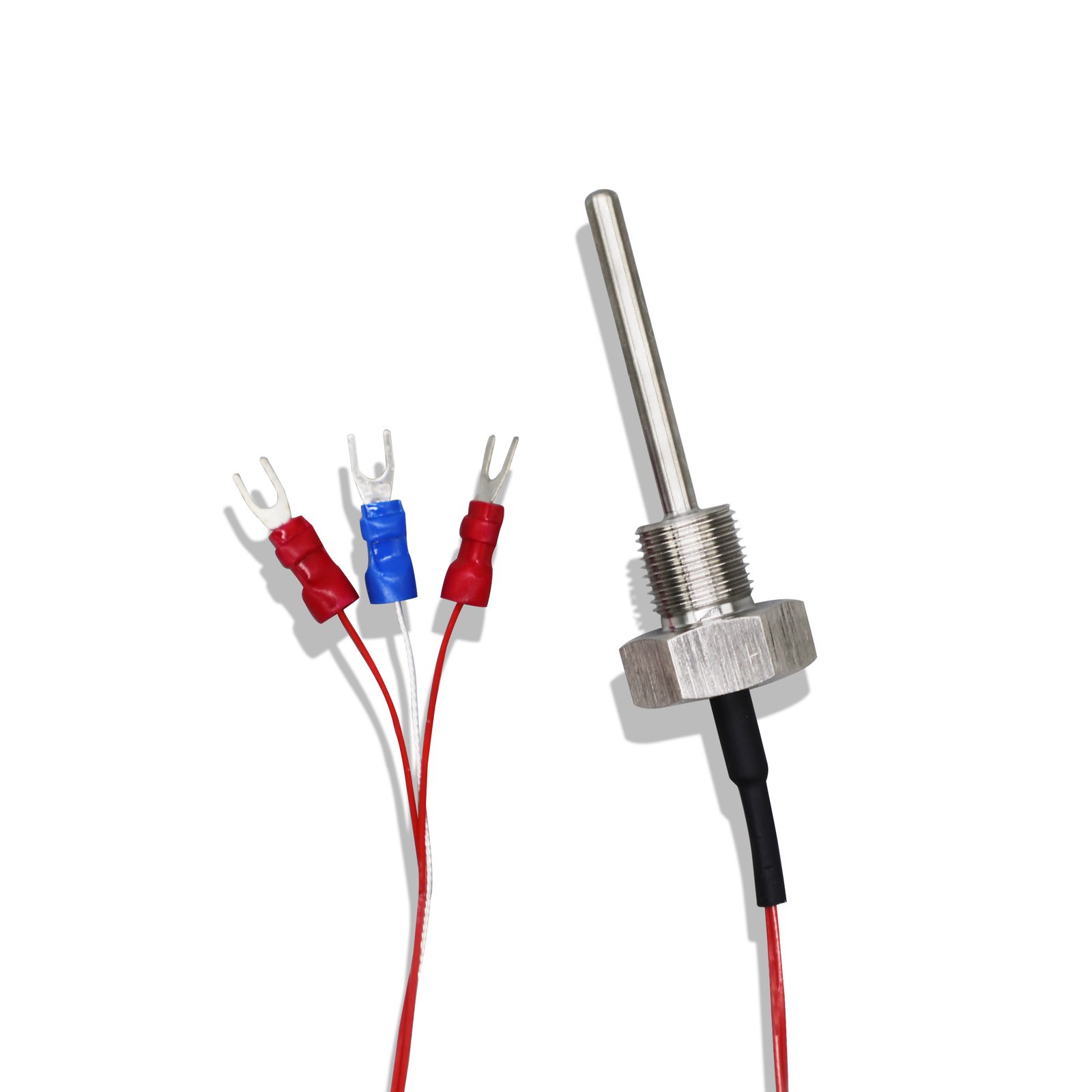

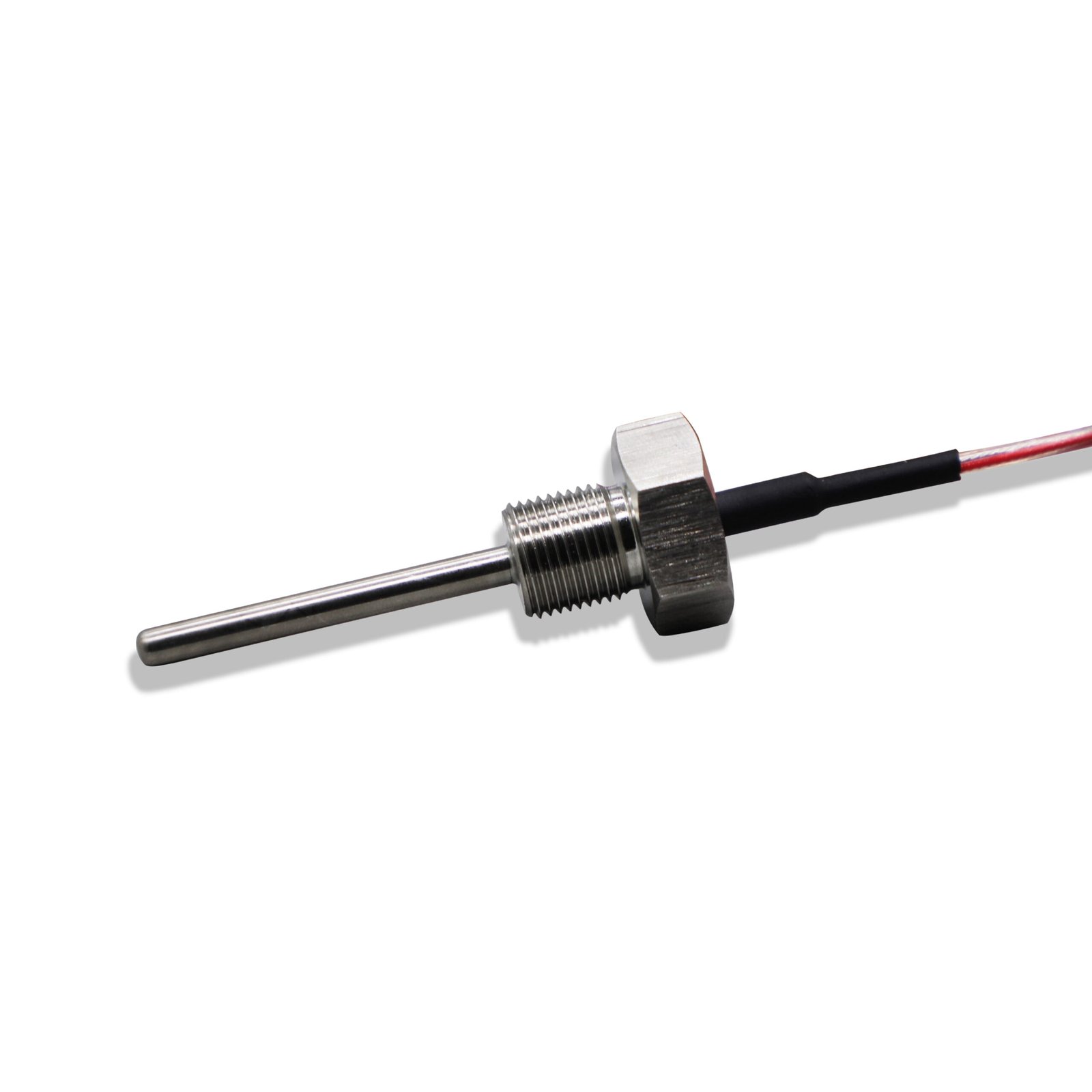

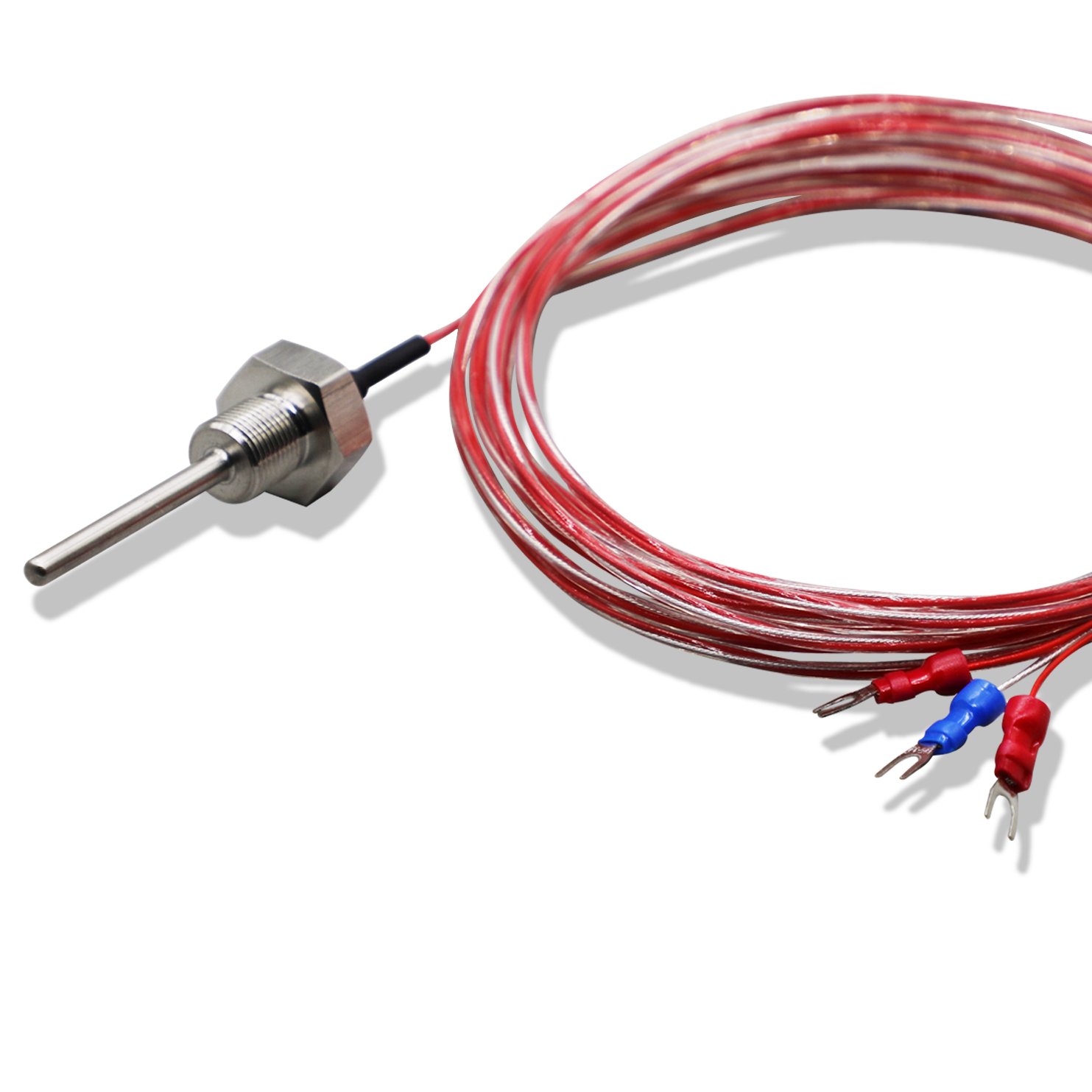

This threaded PT100 RTD temperature sensor features integrated stainless‑steel thread fitting, enabling direct screw‑in installation into pipes, tanks and vessels for sealed temperature measurement. The PTFE red‑and‑white stranded cable delivers outstanding high‑temperature resistance, chemical corrosion resistance and insulation performance, suitable for humid and corrosive working environments.

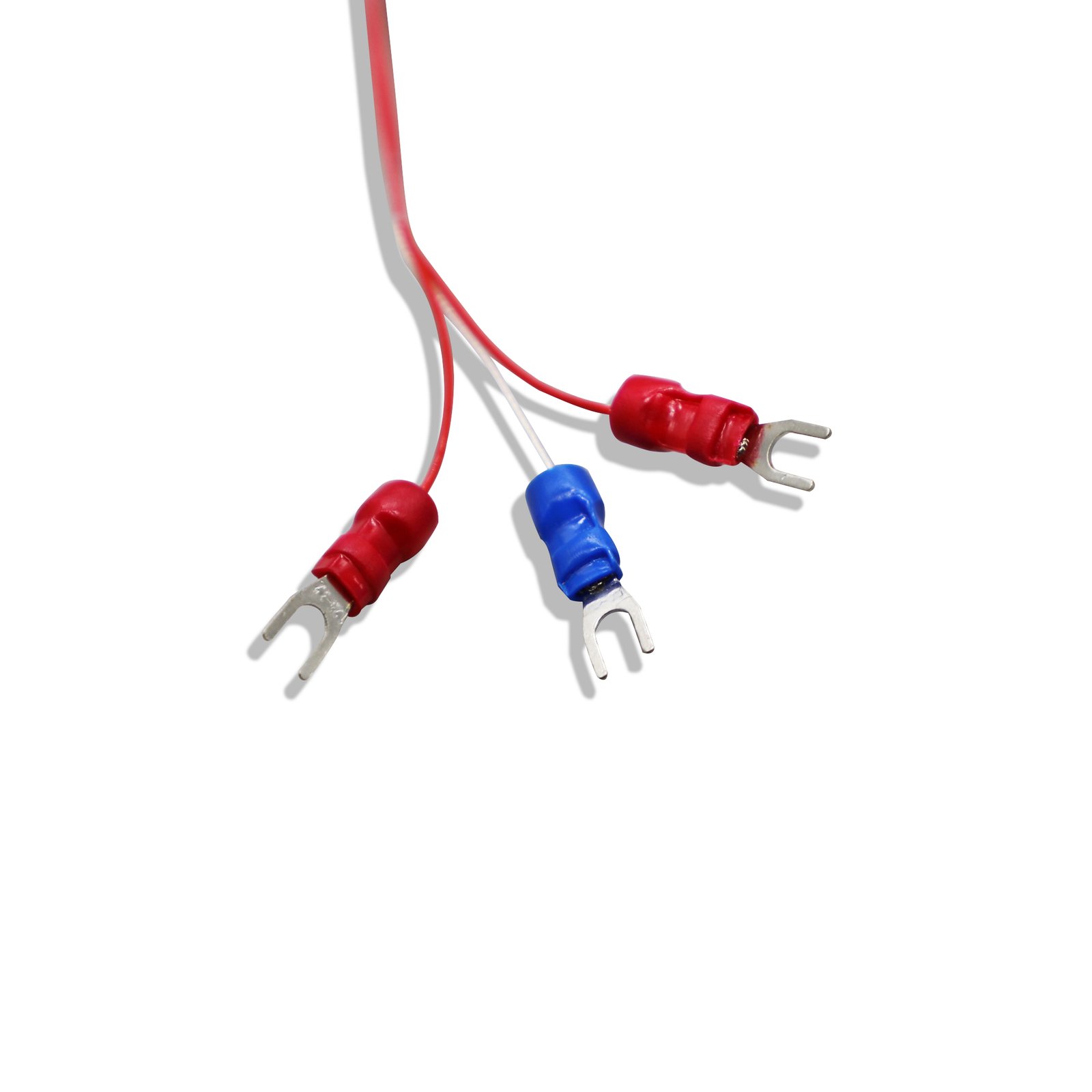

3‑wire configuration minimizes cable‑resistance‑caused measuring error, ensuring accurate and stable temperature output. Pre‑crimped spade terminals allow quick on‑site wiring without soldering. Class A / Class B precision grades available. Thread specifications, probe insertion depth and cable length can be customized to match different process equipment.
Commonly used for pipeline, reaction tank, hydraulic system, boiler and industrial fluid temperature acquisition.
Key Features
✅ Stainless‑steel threaded fitting, screw‑in sealed installation
✅ PT100 platinum RTD sensing element, high‑precision measurement
✅ PTFE high‑temp cable, anti‑corrosion, chemical resistant
✅ 3‑wire design reduces line resistance interference
✅ Pre‑crimped spade lugs for fast wiring
✅ Custom thread size, probe length and cable length supported
