Product Description

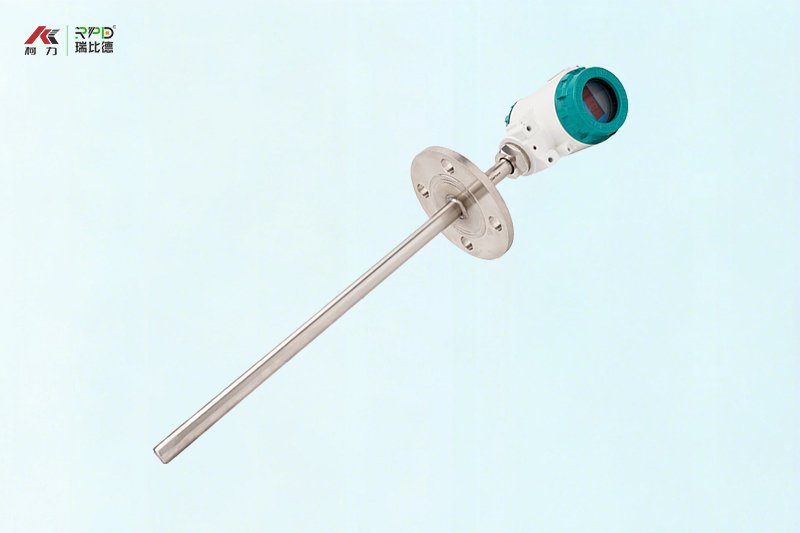

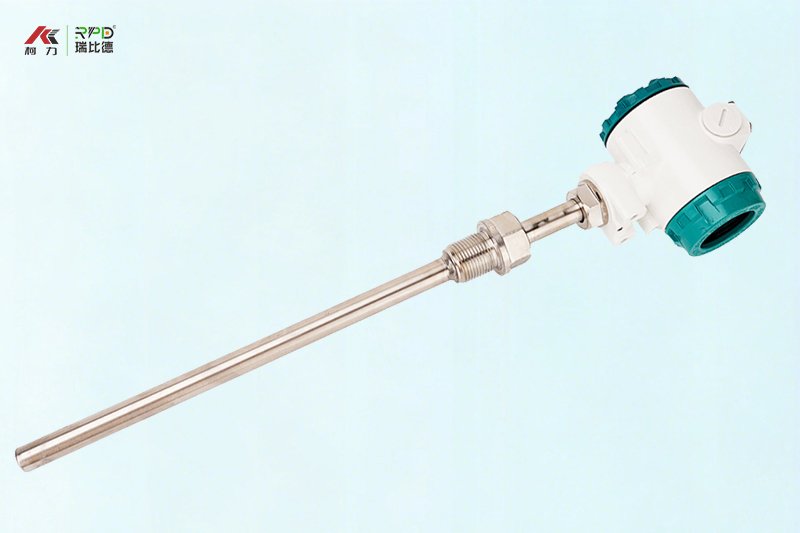

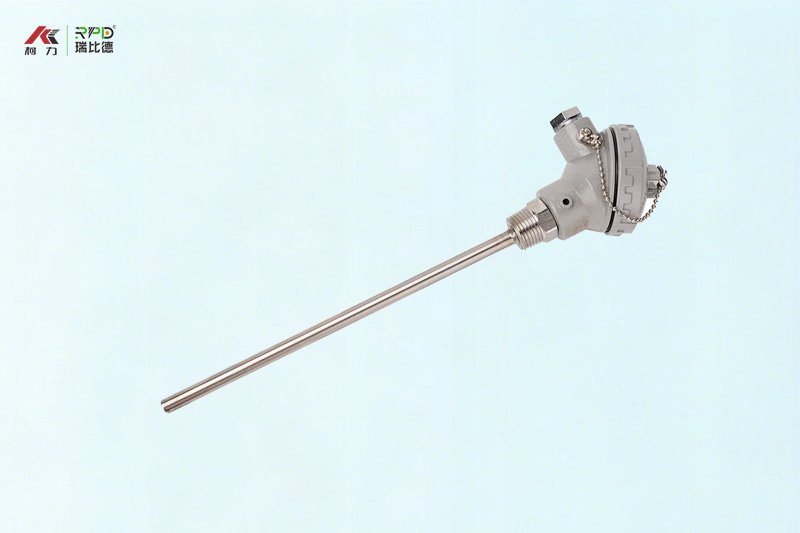

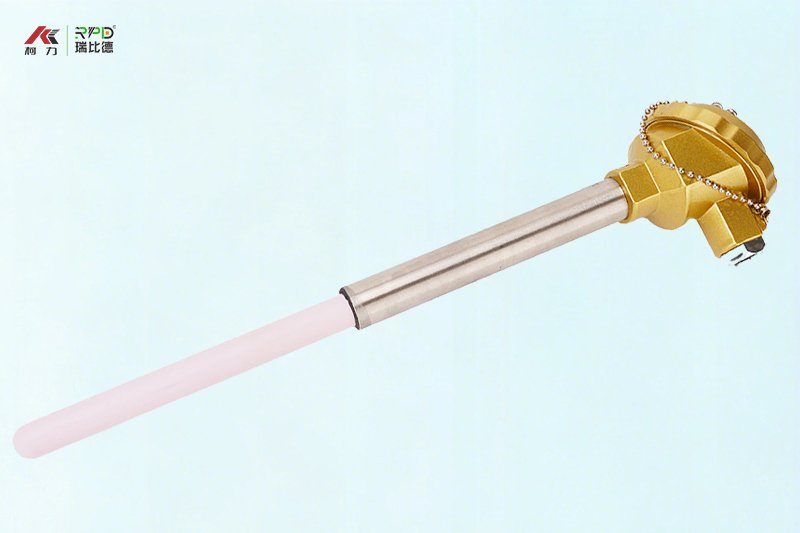

This industrial grade sheathed Pt100 RTD temperature sensor adopts high-purity platinum resistance element, equipped with stainless steel sheath and mineral insulated filling. It features high accuracy, fast response, anti-vibration, pressure resistance and long-term stability.
The sensor has a compact structure and good waterproof and dustproof performance, which can be directly used for temperature detection of liquids, gases and solid surfaces. It is widely applied in automation equipment and industrial sites such as chemical industry, electric power, metallurgy, HVAC, food and pharmaceutical industries.
We support customization of probe diameter, length, wiring method and terminals to meet different working conditions.
Product Parameters
- Sensor Type: Pt100 RTD
- Accuracy Class: Class A / Class B
- Temperature Range: -50℃ ~ 400℃ (higher temp customizable)
- Sheath Material: 304 / 316 Stainless Steel
- Probe Diameter: 3mm, 4mm, 5mm, 6mm
- Wiring: 2-wire / 3-wire / 4-wire
- Protection Grade: IP65 / IP68
- Application: Industrial temperature measurement, pipeline and tank temperature detection, automation equipment
