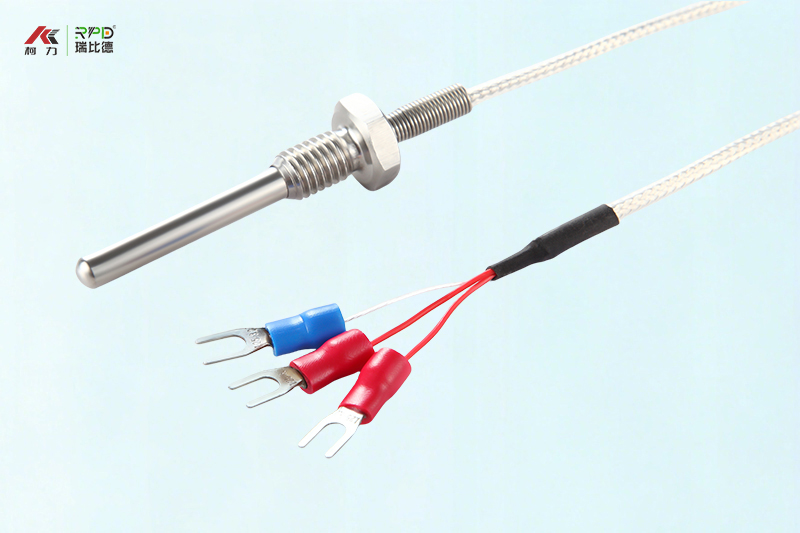

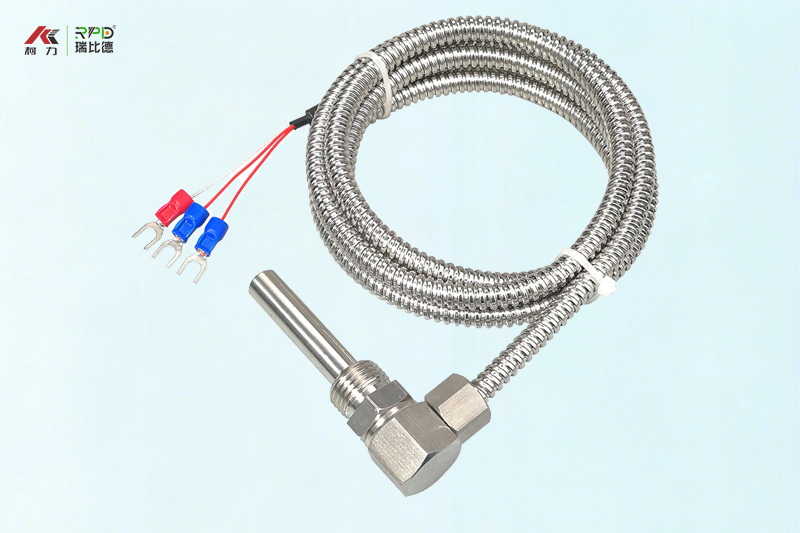

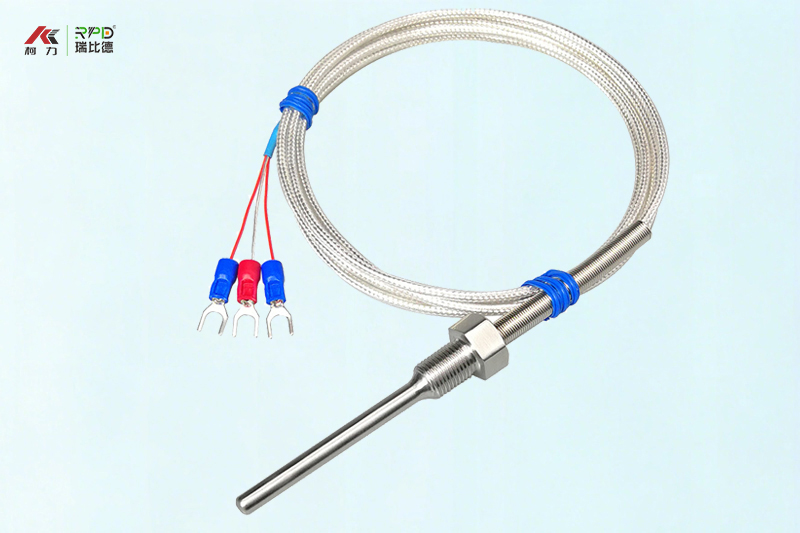

Product Parameters: Threaded Mounting PT100 RTD Temperature Sensor
- Product Name: Threaded Mounting PT100 RTD Temperature Sensor
- Sensing Element: PT100 (Platinum Resistance)
- Accuracy: Class A （±0.1℃）/ Class B（±0.2℃）
- Temperature Range: -50℃ ~ +450℃
- Protection Tube: Stainless Steel 304 / 316
- Thread Type: M8, M10, M12, M18, 1/8″, 1/4″, 1/2″ NPT/BSP
- Probe Diameter: 3mm, 4mm, 5mm, 6mm, 8mm
- Probe Length: Customizable (50mm ~ 1000mm)
- Wire System: 2-wire / 3-wire / 4-wire
- Protection Grade: IP65 ~ IP68
- Application: HVAC, industrial pipeline, boiler, food machinery, automation equipment
Product Advantages:
- High precision PT100 sensing element, stable and reliable
- Various standard threads for easy installation and replacement
- Fast response time, good shock resistance and long service life
- Wide temperature measuring range, strong corrosion resistance
- Support OEM & ODM customization for industrial applications
Note: RBD temperature sensor factory accepts OEM/ODM.
