Product Description
The NTC 10K Temperature Sensor is a negative temperature coefficient (NTC) thermistor, a passive electronic component whose resistance decreases exponentially as temperature rises. The “10K” denotes its nominal resistance of 10,000 Ω (10 kΩ) at 25°C, the industry-standard reference point. It converts temperature changes into measurable resistance variations, enabling precise temperature sensing, monitoring, and control across consumer, industrial, and automotive applications.
| Parameter | Typical Value |
|---|---|
| Nominal Resistance (R25) | 10kΩ ±1%, ±2%, ±5% |
| B-Value (B25/85) | 3435K / 3950K / 3977K |
| Operating Temperature Range | -40°C ~ +125°C |
| Temperature Accuracy | ±0.5°C ~ ±1°C |
| Thermal Time Constant | ≤ 5s (in air) |
| Insulation Resistance | ≥ 100MΩ @ 500V DC |
| Lead Wire Type | PVC / Silicone Rubber / Teflon |

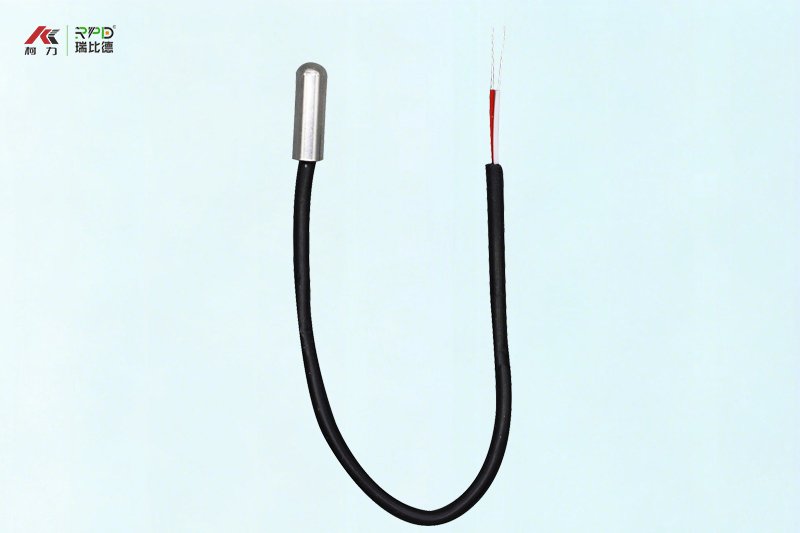

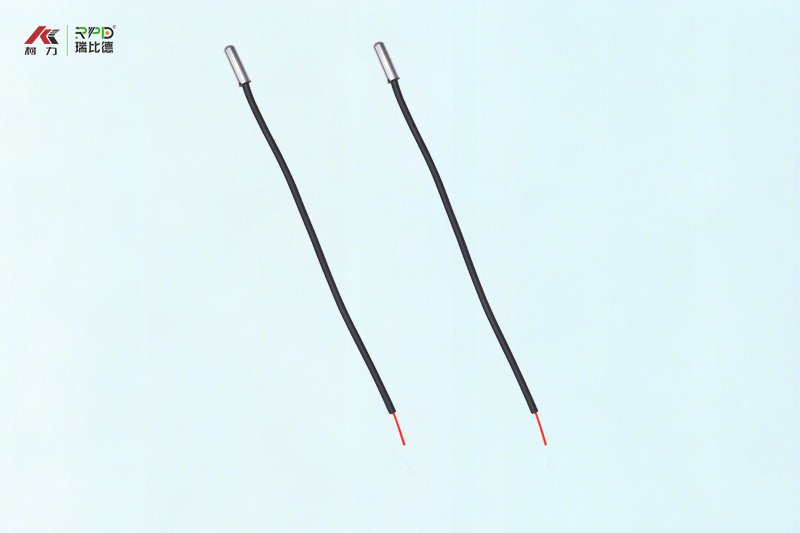

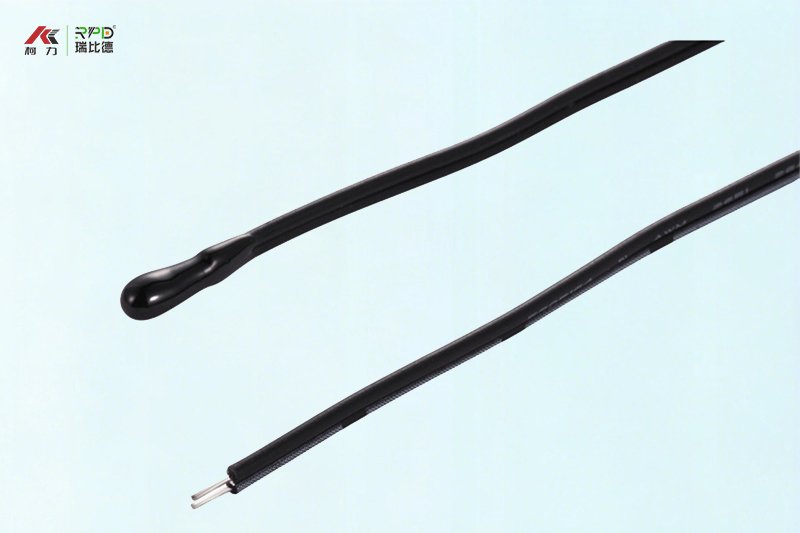

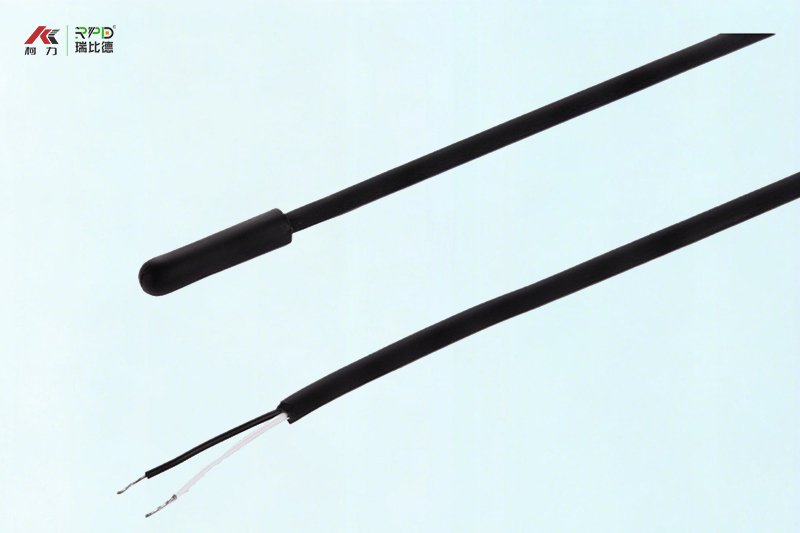

| Probe Material | Stainless Steel / Epoxy / Copper |
| Output Type | Resistance signal (analog) |
| Storage Temperature | -50°C ~ +150°C |
Core Advantages
- High Sensitivity & Fast Response
Exhibits a large resistance change for small temperature fluctuations, enabling detection of minute thermal variations with rapid response time.
- Cost‑Effective & Compact
Low unit cost (as low as $0.05–$0.30) and small form factor, ideal for mass production and space‑constrained designs.
- Easy Integration
Analog output (resistance) directly compatible with ADCs; no digital protocol required, simplifying circuit design and firmware development.
- Wide Environmental Compatibility
Available with waterproof, high‑temperature, and corrosion‑resistant packages, suitable for harsh industrial and outdoor environments.
- Stable & Reliable
Consistent performance over time and temperature; low drift ensures long‑term measurement accuracy.
Typical Applications
Consumer Electronics
- Refrigerators, freezers, and air conditioners for temperature control
- Smartwatches, wearables, and medical devices for body/ambient temperature monitoring
- Battery packs (laptops, power banks) for thermal protection
Industrial & HVAC
- HVAC systems, heat pumps, and boilers for temperature regulation
- Industrial equipment, motors, and power supplies for overheat protection
- Food processing, cold chain logistics, and environmental chambers
Automotive & EV
- EV battery management systems (BMS) for cell temperature monitoring
- Engine coolant, intake air, and cabin temperature sensors
- Charging stations and power electronics thermal management
Other Fields
- Medical devices (incubators, diagnostic equipment)
- IoT sensors, smart home thermostats, and weather stations
- Temperature compensation in precision circuits and instrumentation
